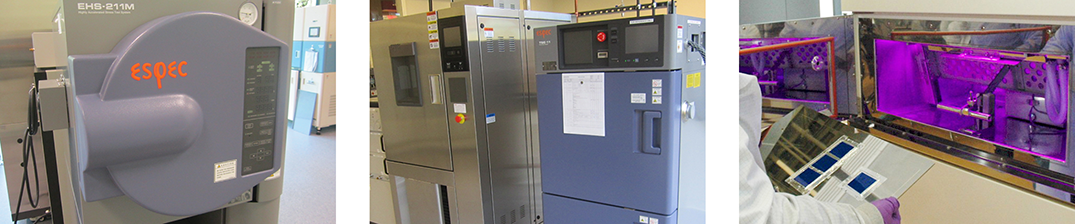

17B SMART Microsystems Life Test.png

SMART Microsystems’ environmental life testing identifies reliability issues early in your product development. Our contract testing laboratory works directly with you to provide testing solutions that help ensure product quality and reliability. As part of your turn-key product solution, reliability study, or on an as-needed basis for overflow/bandwidth, SMART Microsystems can solve your issues before they become a problem in the field. For additional information you can call or send us an email to discuss your environmental life testing needs.

ACCELERATED UV DURABILITY SPECIFICATIONS
•   30x irradiation over conventional weatherometers
•   Acceleration factors up to 110x (material dependent)
•   Irradiation: 1500W/m2
•   Light wavelength: 295-450nm
•   Light uniformity: 90%
•   Temperature control: 50°C to 85°C  during irradiation; 35°C to 75°C  during dark; 30°C  during dew
•   Humidity control: 40% to 70% RH during irradiation; 50% to 90% RH during dark; 97% to 100% RH during dew
•   Black panel temperature stability: ±3°C

VIBRATION TABLE SPECIFICATIONS
Vibration table test limits:
•   Sine Force - 40 Ibf Peak
•   Random Force - 28 Ibf rms
•   Shock Force - 150 Ibf peak


















HAST SPECIFICATIONS
•   Unsaturated or saturated humidity control
•   Multi-mode system (wet bulb/dry bulb) controls humidity at steady state and during ramps
•   Programmable controller with temperature, humidity, and count-down display
•   12 Specimen power terminals, allows power-up of specimens
•   Two feed-through ports
•   Meets specification EIA/JEDEC Test Method A110 & 102C

THERMAL SHOCK SPECIFICATIONS
•   High temperature exposure: 60°C to 200°C
•   Low temperature exposure: -65°C to 0°C
•   Temperature stability: ±0.5°C
•   Feed-through port
•   Meets specifications Mil-Std 883 1010.7/1010.8, IEC 61300-2-47, JEDEC JESD47E, JESD22-A104

THERMAL/HUMIDITY CYCLING & STEADY-STATE
SPECIFICATIONS

•   Temperature range: -70°C to 180°C
•   Temperature stability: ±0.3 °C  (up to 100°C)
•   Heating rate: 5.2 °C/min
•   Cooling rate: 3.5 °C/min
•   Humidity range: 10% to 98% RH
•   Humidity stability: ±2.5 % RH
•   Feed-through port
•   Meets specifications JESD22-A100C, JESD22-A101C, IPC/JEDEC J-STD-020D.1
